Cutting machine Festool KAPEX KSC 60 EB-Basic

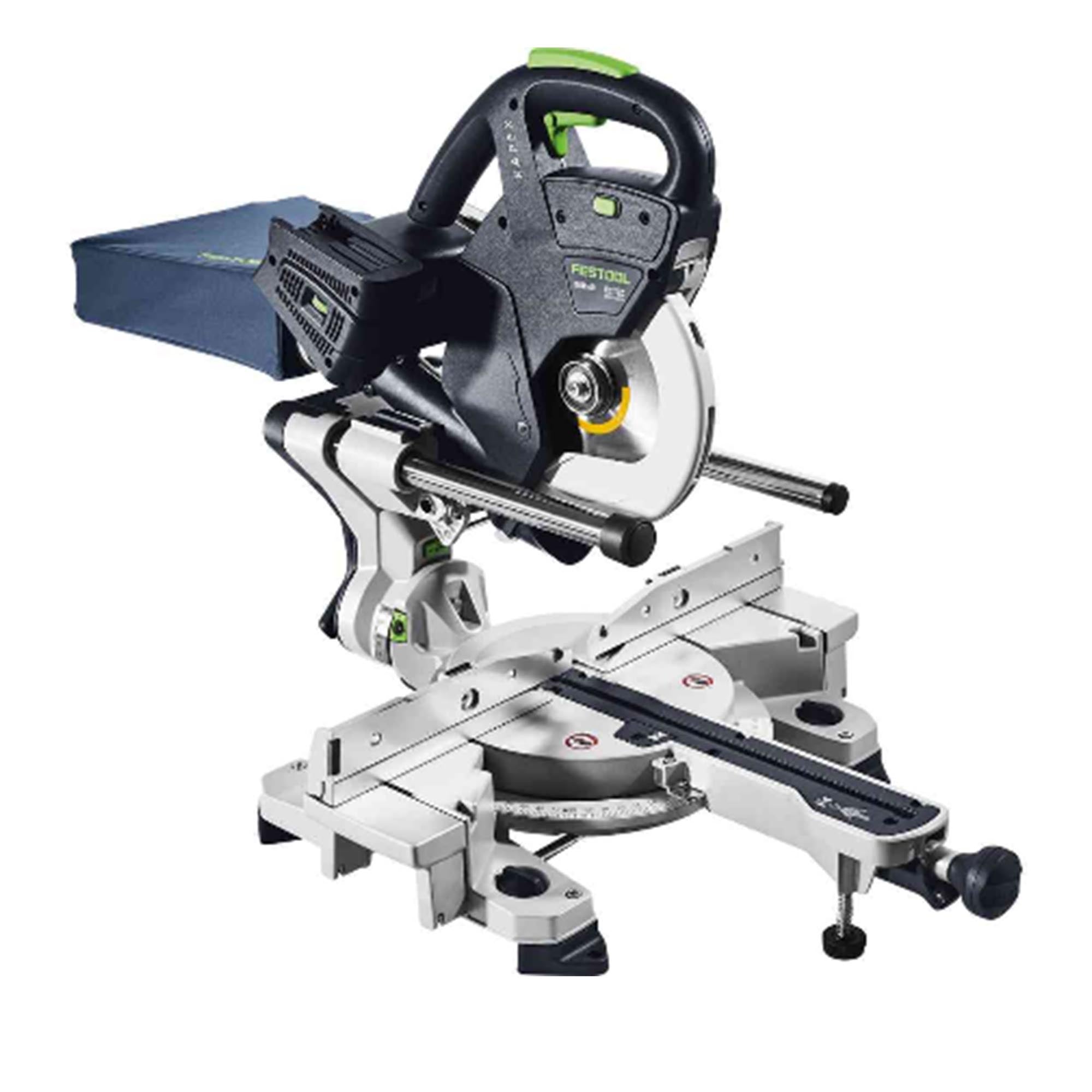

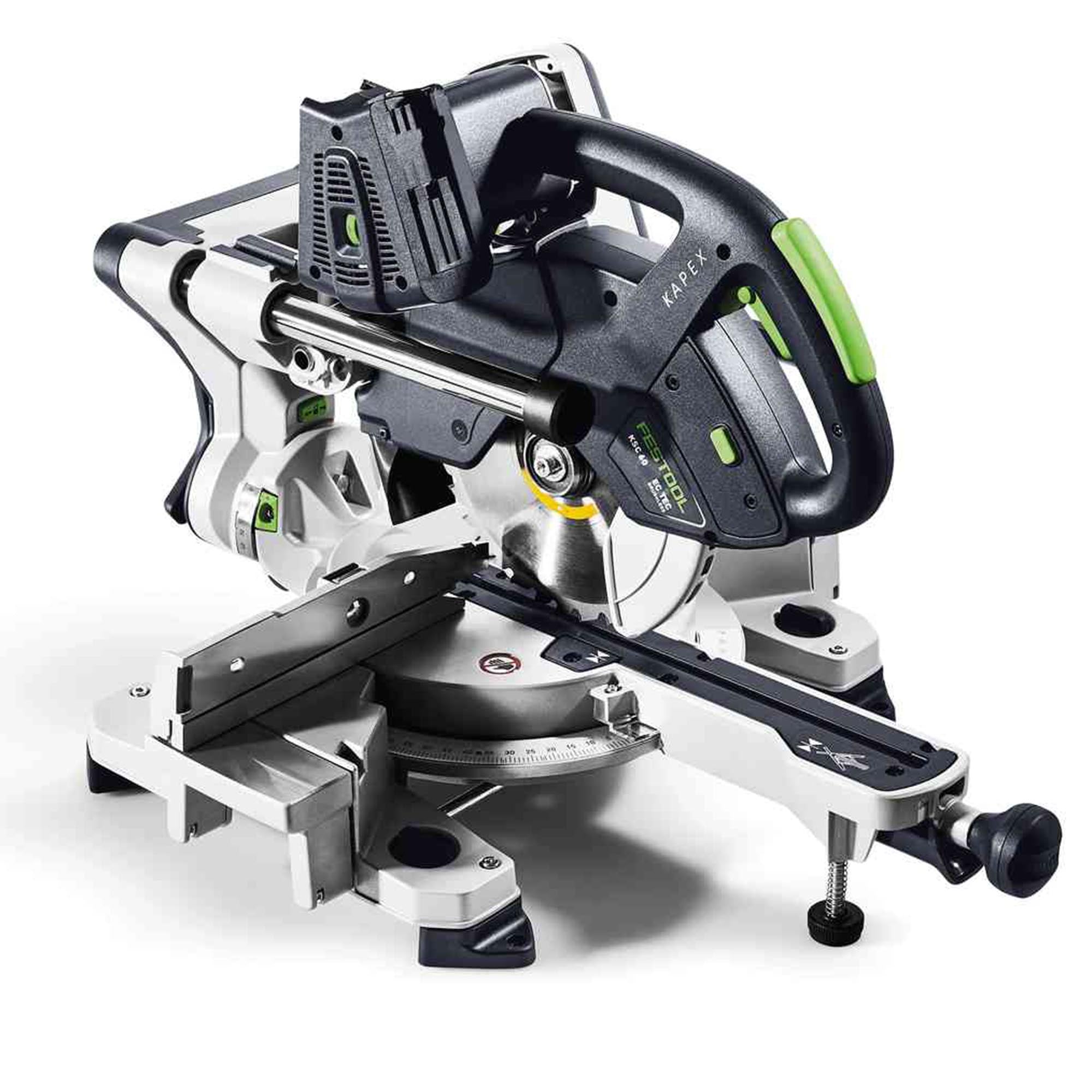

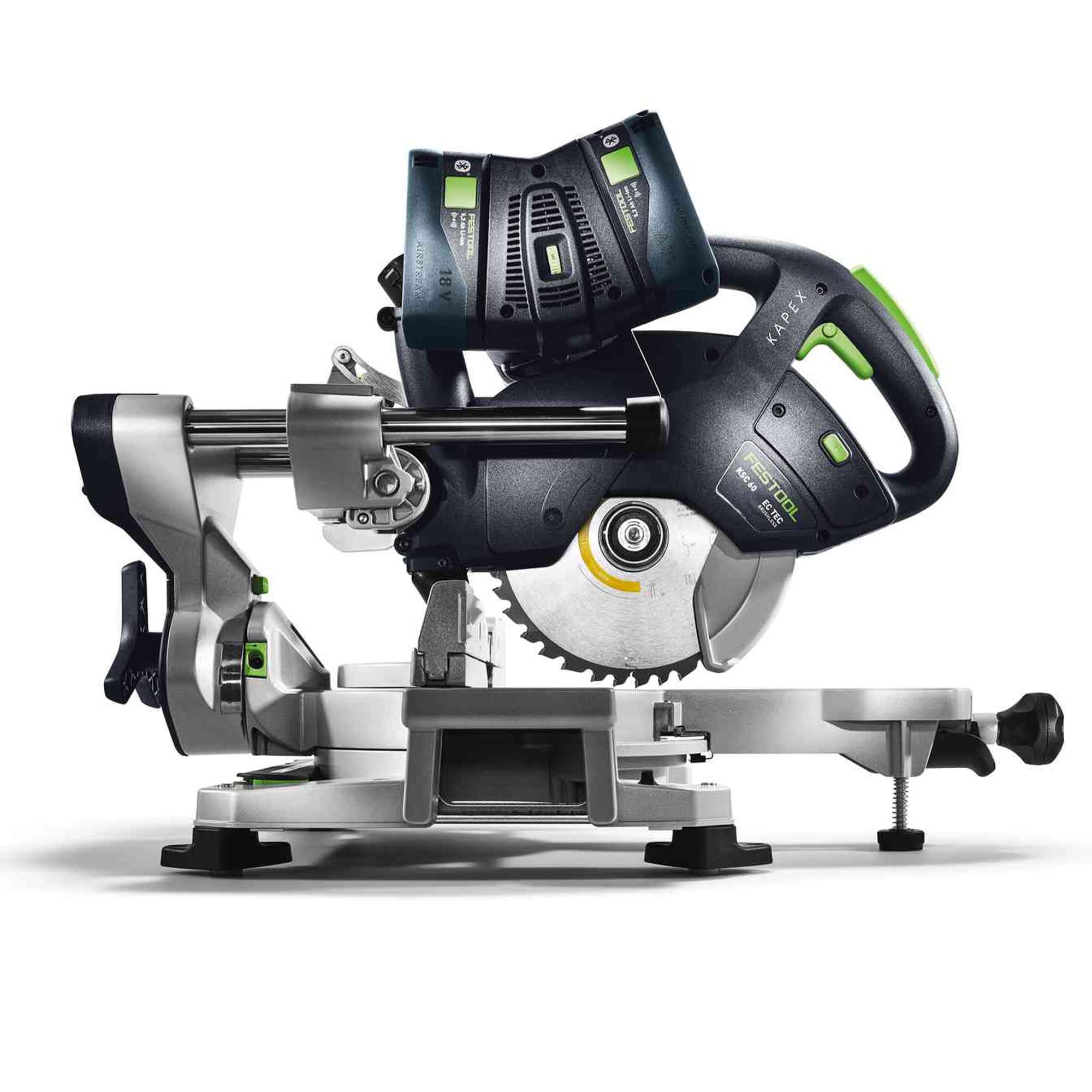

Cordless radial mitre saw Festool KAPEX KSC 60 EB-Basic, High precision cross cuts. With all-day battery power.
The new cordless KAPEX KSC 60 achieves highly precise radial cuts – and this in a huge variety of applications thanks to diagonal angles of up to 60 degrees on both sides and tilt angles of up to 46/47 degrees on both sides. The double-column guide with two bearings ensures precise and friction-free blade guidance: every cut is perfect, without wobbling or jerking. The brushless EC-TEC motor in combination with the dual battery system ensures almost infinite stamina – sufficient for all typical applications of a whole working day. And last but not least, many intelligent details such as speed preselection, application-specific blades, the bevel, the practical ergonomic trolley or the dust bag, which ensure ergonomic, healthy and highly professional working.

• Precision: The double-column guide with two bearings ensures precise and friction-free sliding
• Versatile: diagonal angle up to 60 degrees on both sides and tilt angle up to 47 degrees on both sides
• Long-lasting: The combination of the brushless EC-TEC motor with the dual battery system offers maximum power
• Mobile: low weight, compact shape, comfortable handles
• Working according to the material: with blades for each material and speed preselection for the material-specific speed
• Working with little dust: dust collection bag for dust-free working without a mobile dust extractor
• Simple: false square for detecting internal and external angles
• Precise: LED control light for precise display of the cutting line and optimum view of the track
• Flexible: Work table extension for safe support of longer workpieces
• Clever: The additional feet bring the work table of the KSC 60 exactly to the height of the SYSTAINER SYS 3 M 112 or the SYSTAINER SYS 1
• Exact angles: precise and clearly visible angle scale. Either with preset angles via snap points, or completely individually with an easy-to-use clamping
• Absolutely easy: changing the blade is done in an instant with the shaft lock


Main applications:

• Ideal for mobile use at the workplace
• Cutting to size of boards and panels up to 305 x 60 mm
• Cutting of strips, profiles and beams with thickness up to 60 mm
• Precise fit right into the corners of floor and ceiling strips, without the need for calculations - in combination with the bevel

TECHNICAL SPECIFICATIONS

• Battery voltage 18/36 V
• No-load speed 1300 - 1800/3500 min⁻¹
• Blade diameter 216.00 mm
• Cutting depth 90°/90° 305 x 60 mm
• Cutting depth 45°/90° 215 x 60 mm
• Cutting depth 45°/45° (left) 215 x 40 mm
• Cutting depth 45°/45° (right) 215 x 20 mm
• Tilt angle 47/46°
• Bevel angle 60/60°
• Cutting depth 60°/90° 150 x 60 mm
• Measurements (L x W x H) 639 x 459 x 442 mm
• Ø dust extraction connection 27/36 mm
• Drive type Battery
• Product weight 18.00 kg

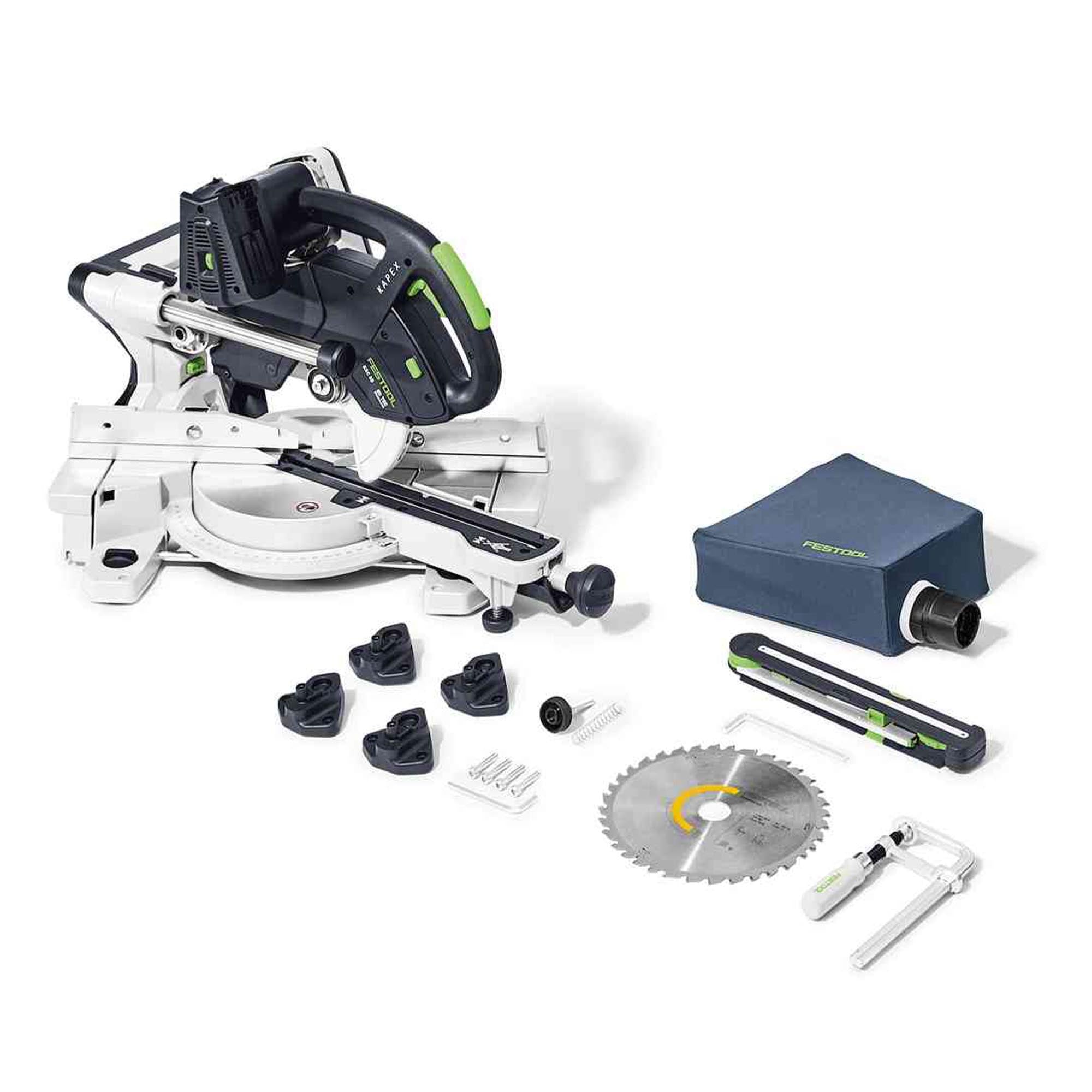

ACCESSORIES SUPPLIED

• WOOD UNIVERSAL HW 216x2,3x30 W36 blade
• FSZ 120 clamp
• Control light SL-KS 60
• SM-KS Fake Team
• A-SYS-KS 60 riser for KS 60, KSC 60
• Dust bag SB-KSC
• 6mm Allen key
