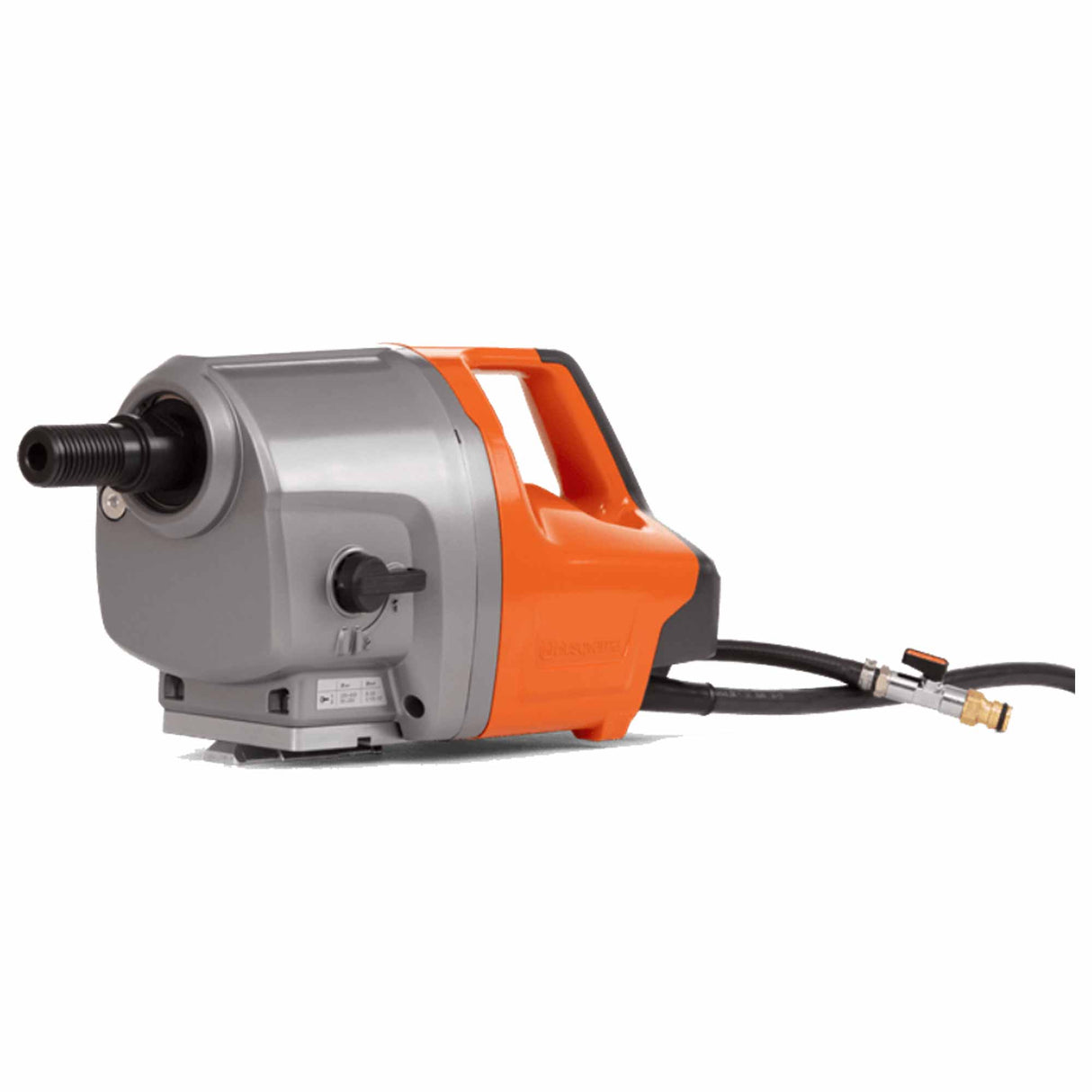

There Core drill Husqvarna DM 700 most powerful and versatile electric drill for drilling holes with diameters from 80 mm to 600 mm. It features PRIME™ high-frequency technology. High power, low weight, intuitive setup and intelligent design make the DM 700 the ideal choice for heavy-duty applications such as rebar and where multiple, deep and large-diameter holes are required. Also suitable for water evacuation, plumbing work and waste evacuation pipes. Can be used with the PP 70 and PP 220 power packs.
- Max. diameter of drill bit, installation with frame 600 mm
Increased productivity
Improved drilling performance for increased productivity in combination with the PP 70 group.
Adjustable with a wide range of speeds
Adjustable RPM range with 18 settings, for optimal speed with any size chainring with the PP70 group.
Extremely powerful
The motor produces 6 kW at the shaft (3 kW in single phase).
Maintenance required at a minimum
Water and dust resistant, water cooled with minimal maintenance required.
DIMENSIONS
-
- Weight 14 kg
- Product size, length 452 mm
- Product size, depth 164 mm
MOTOR
- Electronic product Yes
- Rated input power 6 kW
SPECIFICATIONS
-
Water flow, min 0.5 l/min
- Water pressure, max 8 bar
- External shaft thread 1 1/4" 7 UNC
- Number of gears of the gearbox 2
CORE DRILLING SYSTEM
- Max. diameter of drill bit, installation with frame 600 mm
- Recommended drill diameter, min 80 mm
SOUND AND NOISE
- Sound power level, LWA 113 dB(A)
- Noise emission measurement 112 dB(A)
- Sound pressure level at operator's ear 98 dB(A)
