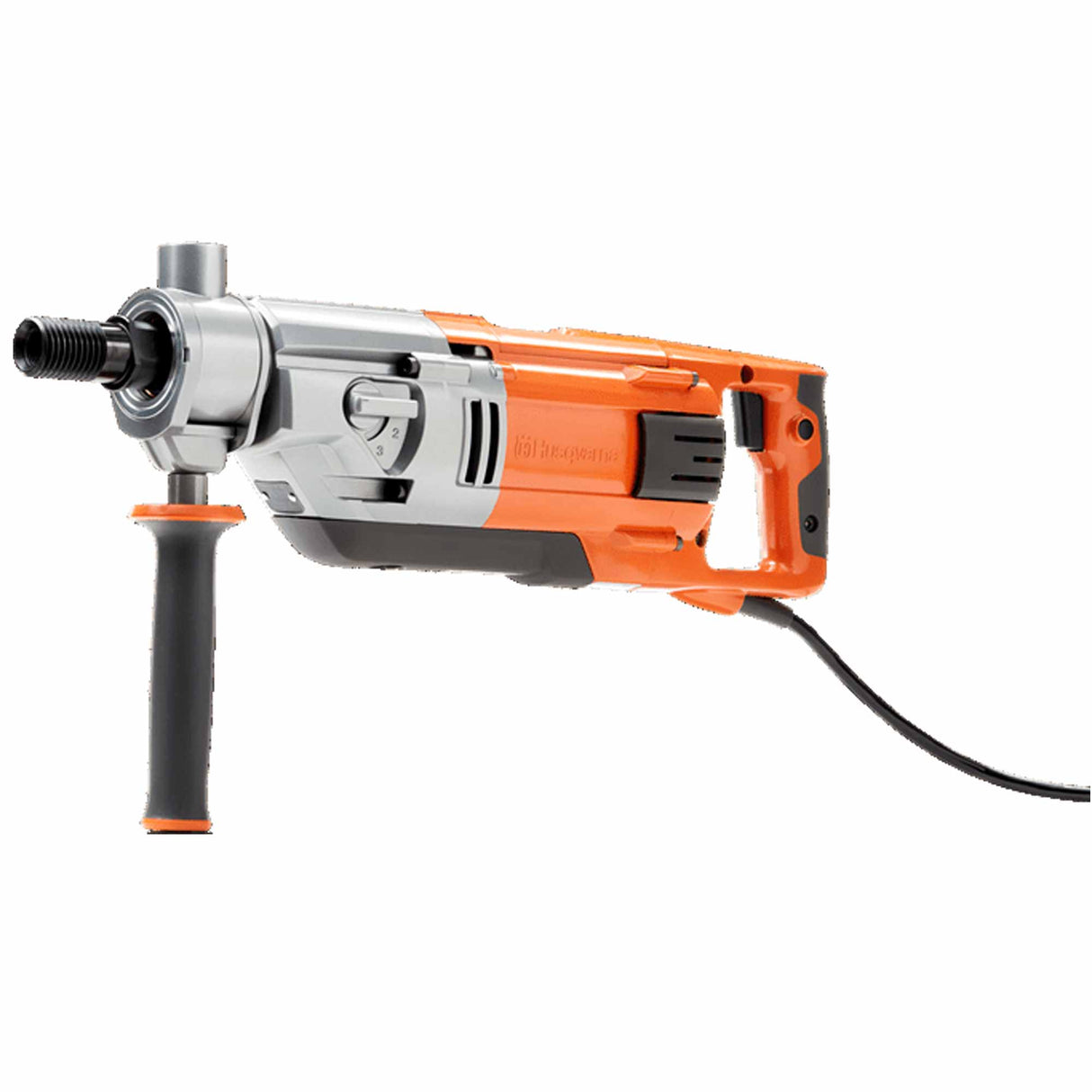

Core drill Husqvarna DM 220 1850W

There Core drill Husqvarna DM 220 manual, ideal for both dry and wet drilling. The DM 220 has an electronic positioning system for precise drilling, making it a perfect choice when looking for a precise and efficient core drilling motor. The ergonomic handle allows good control when drilling. Drilling up to 80 mm or drilling with support up to 150 mm. Suitable for light applications, such as ventilation, hydraulic pipes, electrical sockets and cables. An excellent choice for professionals and semi-professionals.

• Max drill diameter, manual use 80 mm
• Max. diameter of drill bit, installation with frame 150 mm
• Voltage 220-240V

360 degree adjustable handle

For a more ergonomic position.

Positioning system for greater precision in coring

An electronic aiming system shows when the machine is vertical, horizontal or at a predefined angular position.

Overload protection

The machine uses pulsations to warn of overload. If the load is not reduced the motor shuts down to prevent overheating. Elgard increases productivity and extends the life of the machine.

Solid and ergonomic design

Solid and durable designed to protect electronics. Easy to carry and install thanks to its light weight and ergonomic design.

DIMENSIONS

• Water connector G 1/4"
• Weight 7.5 kg
• Product size, length 560 mm
• Product size, depth 105 mm

MOTOR

• Electronic product Yes
• Frequency 50 Hz
• Voltage 220-240V
• Rated input power 1.85 kW

SPECIFICATIONS

• Water pressure, max 8 bar
• Internal shaft thread G 1/2"
• External shaft thread 1 1/4" 7 UNC
• Number of gears of the 3 speed gearbox

CORING SYSTEM

• Max drill diameter, manual use 80 mm
• Max. diameter of drill bit, installation with frame 150 mm
• Recommended drill diameter, min 0 mm

SOUND AND NOISE

• Sound power level, LWA 108 dB(A)
• Noise emission measurement 107 dB(A)
• Sound pressure level at operator's ear 93 dB(A)
